TheImportanceofProperElectricalWiringinCaravansandSafetyTips
Building or renovating a caravan is an exciting journey of turning a blank canvas into a dream home on wheels. However, beneath the beautiful wooden paneling and stylish upholstery lies the most critical component of your vehicle: the electrical nervous system. While choosing the right off-grid refrigerator or comfortable mattress is fun, the safety and reliability of your caravan rely entirely on a properly designed electrical infrastructure.
Let's explore why correct wiring is a matter of life and death, the common pitfalls to avoid, and how modern smart automation frameworks can permanently solve cable chaos.
ThePillarsofaSafeRVElectricalSystem
A caravan is essentially a moving house subject to constant vibrations, extreme temperature changes, and varying humidity levels. Therefore, residential electrical rules do not simply copy-paste into a vehicle. Here are the critical factors you must get right:
Correct Cable Thickness (Cross-Section): In 12V DC systems, current (Amps) is much higher than in standard 220V AC household systems for the same wattage. Using thin cables for high-draw appliances like water pumps or heaters creates resistance. This resistance causes a voltage drop (meaning your appliances won't work properly) and, more dangerously, generates severe heat that can easily melt the insulation and start a fire.
The 12V and 220V Separation: Your caravan runs a dual-voltage ecosystem. The 12V DC system is powered by your batteries (for lights, pumps, and 12V fridges), while the 220V AC system is used when plugged into shore power or running through an inverter (for air conditioning or household outlets). These two systems must be meticulously separated, physically isolated, and independently fused to prevent catastrophic short circuits and electrocution risks.
Fusing Every Circuit: A fuse is your system's sacrificial lamb. It is designed to burn out and break the circuit before the wire itself overheats in the event of a short. Every single positive wire leaving your battery or distribution block must be appropriately fused as close to the power source as possible.
Correct Cable Thickness (Cross-Section): In 12V DC systems, current (Amps) is much higher than in standard 220V AC household systems for the same wattage. Using thin cables for high-draw appliances like water pumps or heaters creates resistance. This resistance causes a voltage drop (meaning your appliances won't work properly) and, more dangerously, generates severe heat that can easily melt the insulation and start a fire.
The 12V and 220V Separation: Your caravan runs a dual-voltage ecosystem. The 12V DC system is powered by your batteries (for lights, pumps, and 12V fridges), while the 220V AC system is used when plugged into shore power or running through an inverter (for air conditioning or household outlets). These two systems must be meticulously separated, physically isolated, and independently fused to prevent catastrophic short circuits and electrocution risks.
Fusing Every Circuit: A fuse is your system's sacrificial lamb. It is designed to burn out and break the circuit before the wire itself overheats in the event of a short. Every single positive wire leaving your battery or distribution block must be appropriately fused as close to the power source as possible.
TheHiddenDanger:CableClutterandLooseConnections

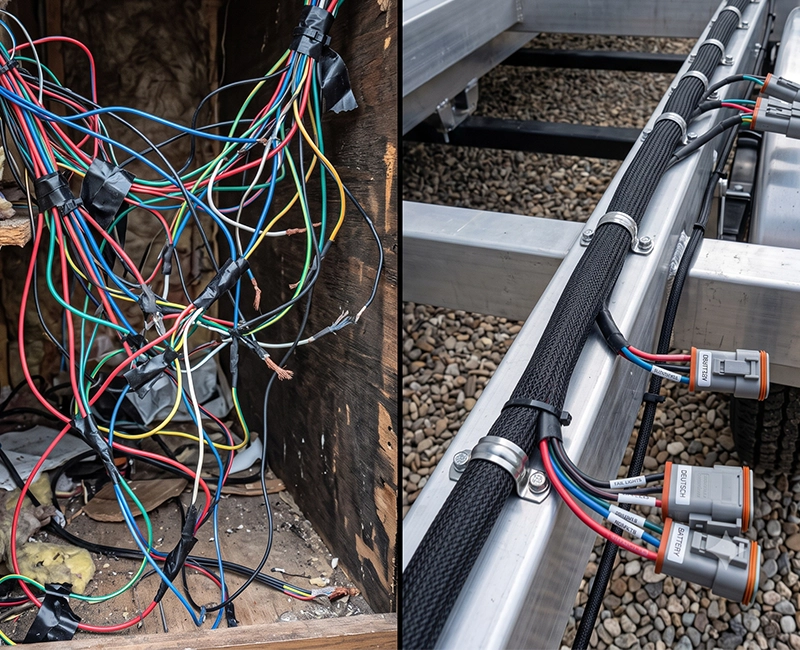

One of the biggest mistakes in DIY builds or older caravans is running individual, unorganized wires from every single light, pump, and switch across the vehicle. Over time, road vibrations cause loose connections, while cables rubbing against sharp metal chassis edges (chafing) strip away insulation.
One of the biggest mistakes in DIY builds or older caravans is running individual, unorganized wires from every single light, pump, and switch across the vehicle. Over time, road vibrations cause loose connections, while cables rubbing against sharp metal chassis edges (chafing) strip away insulation.

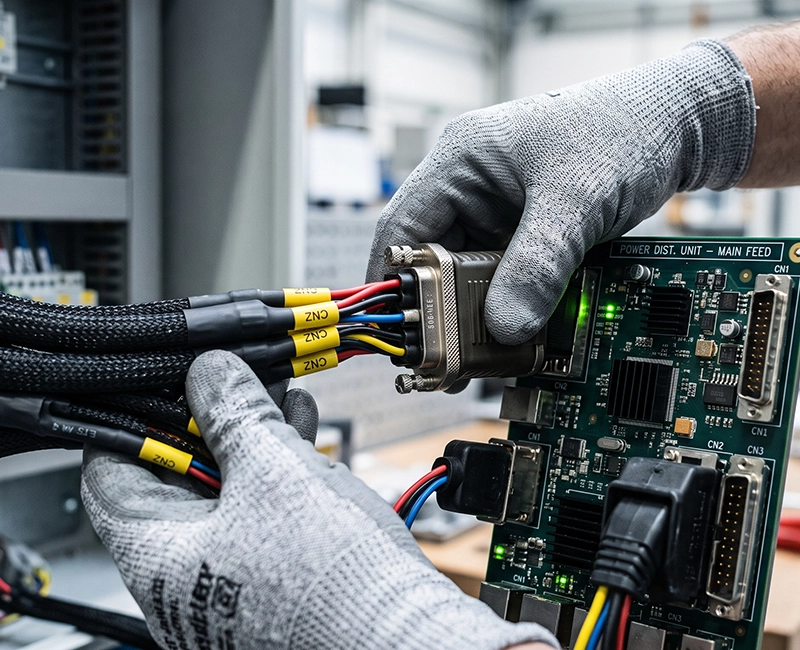

The industry gold standard to prevent this is utilizing professional custom cable harness and cable grouping systems. Pre-grouped, securely pinned, and heavily sheathed harness cables eliminate human error during installation, protect against mechanical wear, and ensure that every connection is perfectly locked in place, even on the bumpiest off-road trails.
PuttinganEndtoChaos:ThexRouteProAutomationFramework
Even with perfect wiring, managing dozens of physical analog switches, separate fuse boxes, and independent battery monitors scattered across the caravan is highly inefficient.

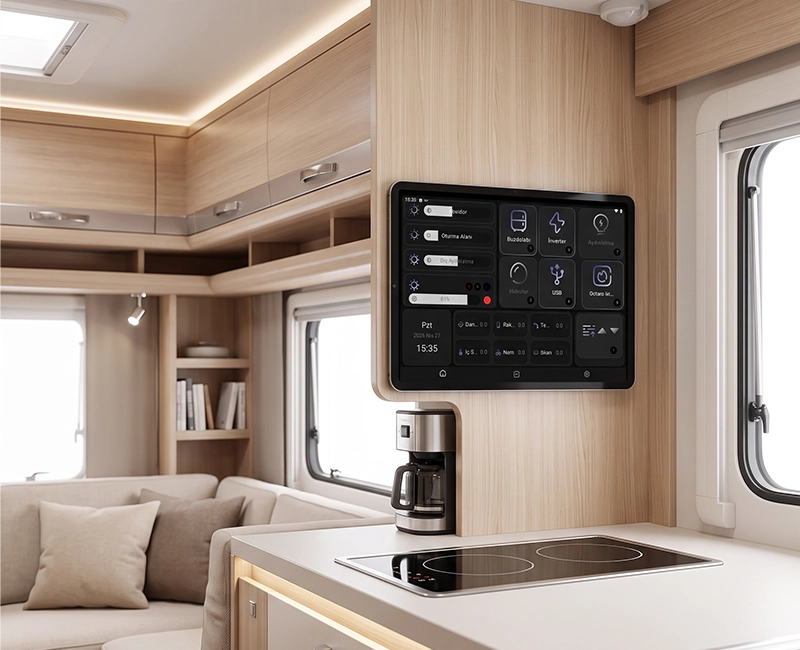

This is where transitioning to a specialized smart caravan control panel and automation framework changes everything. Instead of routing complex, heavy wiring to manual switches all over the cabin, all your grouped harness cables route safely to a single, intelligent distribution hub.
This is where transitioning to a specialized smart caravan control panel and automation framework changes everything. Instead of routing complex, heavy wiring to manual switches all over the cabin, all your grouped harness cables route safely to a single, intelligent distribution hub.
Conclusion
The xRoute Smart Control Systems advantage:
By centralizing your electrical architecture with xRoute Pro, you eliminate the massive web of traditional wiring. The system digitally manages the power distribution, offering built-in smart protections. If a circuit draws too much power, the system can instantly identify the fault and alert you on your display.
You no longer need to guess if your wiring is handling the load. The xRoute smart tablet provides real-time, precise monitoring of your energy consumption, allowing you to control every light, pump, and climate setting from one sleek interface.
Your caravan's electrical system is not the place to cut corners. Investing in proper cable thicknesses, professional wire harnessing, and smart power management is an investment in your safety and peace of mind. By upgrading to a smart caravan control system, you not only protect your vehicle from the invisible threats of electrical failure but also elevate your off-grid living experience to a new standard of digital comfort.
You no longer need to guess if your wiring is handling the load. The xRoute smart tablet provides real-time, precise monitoring of your energy consumption, allowing you to control every light, pump, and climate setting from one sleek interface.
Your caravan's electrical system is not the place to cut corners. Investing in proper cable thicknesses, professional wire harnessing, and smart power management is an investment in your safety and peace of mind. By upgrading to a smart caravan control system, you not only protect your vehicle from the invisible threats of electrical failure but also elevate your off-grid living experience to a new standard of digital comfort.
